Benefits Of Lifepo4 Battery
- Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
- Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.
- Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
- Good performance at high temperature and high temperature resistance
- Low self-discharge rate, less than 3% monthly.
- No memory effects and highly efficient charge.
- Environment friendly: Clean and Green energy poses no pollution on our environment.
Typical Application
- Camper Vans: Camping car/Recreational Vehicles/motorhome
- Marine: boats/Yachting/sailing ship/catamaran
- Electrical Car: Floor Machines/motorbike/electric golf car/forklift/quads/LSA
- Power Tools: Electrical cropper/Electric drill/Electric Saw/Electric Hammer.
- Energy storage: backup power supply/solar energy storage/UPS
- Solar System: Solar street light/solar home system/ solar SPV lighting system
|
Basic Info |
|
|
Product Name |

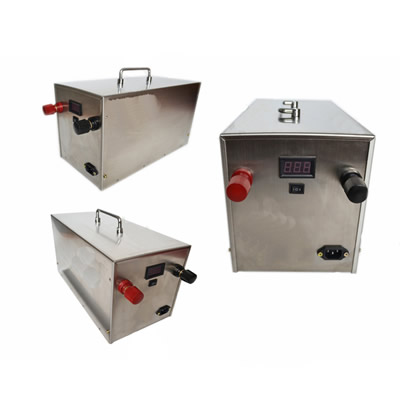

96V 30AH Lifepo4 battery |
|
Model |
96V30AH32650 |
|
Electrical Specification |
|
|
Chemical |
Lithium iron phosphate |
|
Nominal Voltage |
102.4V |
|
Nominal Capacity |
30AH |
|
Cell type |
3.2V 5000mAh |
|
Configuration |
32S6P |
|
Energy |
3072WH |
|
Internal Resistance |
≤120mΩ |
|
Terminal Type |
Anderson/customized |
|
Dimension |
200*400*220mm |
|
Weight |
Around 30kg |
|
Charge and discharge specification |
|
|
Charging Method |
CC/CV |
|
Standard Charging Voltage |
116.8V |
|
Recommended Charging Current |
5A |
|
Max. Charging Current |
15A |
|
Recommended Discharging Current |
15A |
|
Max. Discharging Current |
30A |
|
Pulse Discharge Current |
45A/10S |
|
Operating Temperature |
|
|
Standard Charging Temperature |
0～45℃ |
|
Standard Discharging Temperature |
-20～55℃ |
|
Storage Temperature |
-10～45℃ |
|
Notice: If the battery need be stored for a long time, Pls make sure at least one charge & discharge cycle every six months. |
|
|
Cycle
time and Warranty |
|
|
Cycle life |
2000 times(Cycle@RT, 1C rate, 100%DOD) |
|
Warranty |
24 months |
|
Protection |
|
|
Over Charge Protection |
|
|
Over Discharge Protection |
|
|
Over Current Protection |
|
|
Short Protection |
|
  |
