General Information
Lithium-iron-phosphate (Lifepo4 Or LEF) is the safest of the mainstream Li-ion battery type. It is nonexplosive, non-toxic, higher performing and longer lasting time. The Nominal Voltage of LEF is 3.2V, 6V LEF battery consists of 2 cells connected in series.
This specification define the performance of 6v 7Ah rechargeable Lifepo4 battery pack from our ISO9001 certified production line.
Typical Application
- Play mobile: Toy car, Remote control cars, Aircraft, boats and other toys.
- LED light: Miner’s lamp, Led lighting, small home application, Party lights.
- Power Tools: Electrical cropper, Electric drill, Electric Saw, Electric Hammer.
- Energy storage: backup power supply
|
Basic Info |
|
|
Product Name |

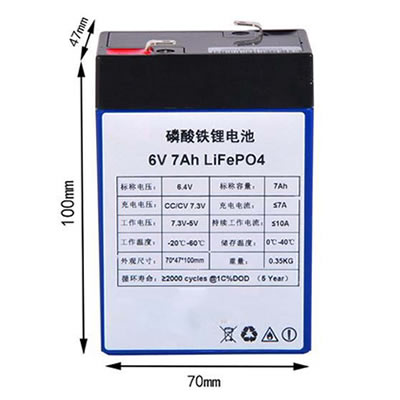

6V 7AH Lifepo4 battery pack |
|
Model |
6V7AH32700 |
|
Electrical Specification |
|
|
Chemical |
Lithium iron phosphate |
|
Nominal Voltage |
6.4V |
|
Nominal Capacity |
7AH |
|
Cell type |
3.2V 7000mah |
|
Configuration |
2S1P |
|
Energy |
44.8WH |
|
Internal Resistance |
≤80mΩ |
|
Terminal Type |
Customized |
|
Dimension |
70*47*100mm (Customized) |
|
Weight |
Around 0.35kg |
|
Charge and discharge specification |
|
|
Charging Method |
CC/CV |
|
Standard Charging Voltage |
7.3V |
|
Recommended Charging Current |
1A |
|
Max. Charging Current |
7A |
|
Recommended Discharging Current |
7A |
|
Max. Discharging Current |
10A |
|
Pulse Discharge Current |
10A/5S |
|
Operating Temperature |
|
|
Standard Charging Temperature |
0～45℃ |
|
Standard Discharging Temperature |
-20～55℃ |
|
Storage Temperature |
-10～45℃ |
|
Notice: If the battery need be stored for a long time, Pls make sure at least one charge & discharge cycle every six months. |
|
|
Cycle time and Warranty |
|
|
Cycle life |
2000 times(Cycle@RT, 1C rate, 100%DOD) |
|
Warranty |
24 months |
|
Protection |
|
|
Over Charge Protection |
|
|
Over Discharge Protection |
|
|
Over Current Protection |
|
|
Short Protection |
|
  |
