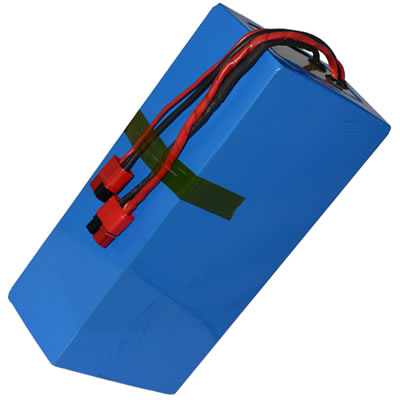

36V 10AH Lithium battery pack

Products > 36V-Lithium-Ion-Battery > 36V 10AH Lithium battery pack

Model：36V 10AH Lithium battery pack
Nominal Voltagel：36V
Nomianl Capacity(mah)：10AH
Charge Current：≤5A
Discharge Current：≤10A
Dimension：125*105*160mm
Weight(g)：3.5KG

Benifits Of Lifepo4 Battery
- Superior “Useable” capacity. Unlike 30%-50% useable capacity, lifepo4 can be up to 85% or more.
- Longer lifespan. 10 times longer than lead acid batteries.
- Fast Charged. Fast charged to 100% of capacity, and a failure to fully charge does not damage the batteries.
- Highly Efficiency. Almost no loss in amps while charging and discharging.
- Less size and weight. Save up to 70% in size and weight.
- Environmental friendly. Lifepo4 battery is the superior friendly option in terms of environmental impact.

Typical Application
- Camper Vans: Camping car/Recreational Vehicles/motorhome
- Marine: boats/Yachting/sailing ship/catamaran
- Electrical Car: Floor Machines/motorbike/electric golf car/forklift/quads/LSA
- Power Tools: Electrical cropper/Electric drill/Electric Saw/Electric Hammer.
- Energy storage: backup power supply/solar energy storage
- LED light: Miner’s lamp/Led lighting/small home application/Party lights.

Basic Info
Product Name	36V 10AH Lifepo4 battery
Model	36V10AH32650
Electrical Specification
Chemical	Lithium iron phosphate
Nominal Voltage	36V
Nominal Capacity	10AH
Cell type	3.2V 5000mah
Configuration	12S 2P
Energy	360WH
Internal Resistance	≤120mΩ
Terminal Type	Customized
Dimension	12510516mm
Weight	Around 3.5kg
Charge and discharge specification
Charging Method	CC/CV
Standard Charging Voltage	43.8V
Recommended Charging Current	2A
Max. Charging Current	5A
Recommended Discharging Current	5A
Max. Discharging Current	10A
Pulse Discharge Current	15A/10S
Operating Temperature
Standard Charging Temperature	0～45℃
Standard Discharging Temperature	-20～55℃
Storage Temperature	-10～45℃
Notice: If the battery need be stored for a long time, Pls make sure at least one charge & discharge cycle every six months.
Cycle time and Warranty
Cycle life	2000 times(Cycle@RT, 1C rate, 100%DOD)
Warranty	24 months
Protection
Over Charge Protection
Over Discharge Protection
Over Current Protection
Short Protection
