24V 200AH Lifepo4 battery

Products > 24V-Lithium-Ion-Battery > 24V 200AH Lifepo4 battery

Model：24V 200AH Lifepo4 battery
Nominal Voltagel：24V
Nomianl Capacity(mah)：200AH
Charge Current：≤100A
Discharge Current：≤200A

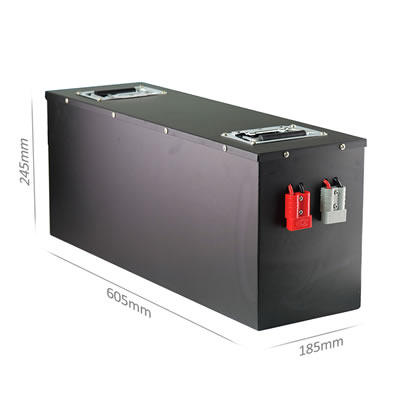

Dimension：605*185*245mm
Weight(g)：37.5KG

Benifits Of Lifepo4 Battery Comparing with Lead Acid Battery

- Superior “Useable” capacity. Unlike 30%-50% useable capacity, lifepo4 can be up to 85% or more.

- Longer lifespan. 10 times longer than lead acid batteries.

- Fast Charged. Fast charged to 100% of capacity, and a failure to fully charge does not damage the batteries.

- Highly Efficiency. Almost no loss in amps while charging and discharging.

- Less size and weight. Save up to 70% in size and weight.

- Environmental friendly. Lifepo4 battery is the superior friendly option in terms of environmental impact.

Typical Application

- Camper Vans: Camping car/Recreational Vehicles/motorhome

- Marine: boats/Yachting/sailing ship/catamaran

- Electrical Car: Floor Machines/motorbike/electric golf car/forklift/quads/LSA

- Power Tools: Electrical cropper/Electric drill/Electric Saw/Electric Hammer.

- Energy storage: backup power supply/solar energy storage

- LED light: Miner’s lamp/Led lighting/small home application/Party lights.

Basic Info
Product Name	24V200AH Lifepo4 battery
Model	24V200AHA123
Electrical Specification
Chemical	Lithium iron phosphate
Nominal Voltage	24V
Nominal Capacity	200AH
Cell type	3.2V 25ah
Configuration	8 S8P
Energy	4800WH
Internal Resistance	≤200mΩ
Terminal Type	Anderson/customized
Dimension	605185245mm
Weight	Around 37.5kg
Charge and discharge specification
Charging Method	CC/CV
Standard Charging Voltage	29.2V
Recommended Charging Current	30A
Max. Charging Current	100A
Recommended Discharging Current	60A
Max. Discharging Current	200A
Pulse Discharge Current	300A/10S
Operating Temperature
Standard Charging Temperature	0～45℃
Standard Discharging Temperature	-20～55℃
Storage Temperature	-10～45℃
Notice: If the battery need be stored for a long time, Pls make sure at least one charge & discharge cycle every six months.
Cycle time and Warranty
Cycle life	2000 times(Cycle@RT, 1C rate, 100%DOD)
Warranty	24 months
Protection
Over Charge Protection
Over Discharge Protection
Over Current Protection
Short Protection
