12V 7A Lifepo4 Battery

Products > 12V-Lifepo4-Replace-Lead-acid > 12V 7A Lifepo4 Battery

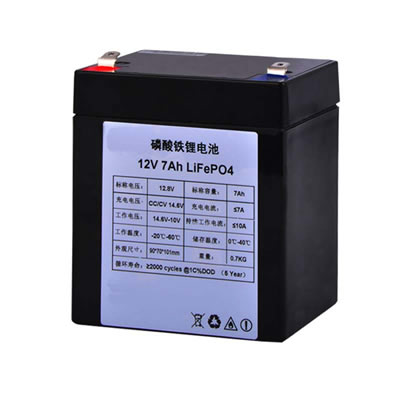

Model：12V 7A Lifepo4 Battery
Nominal Voltagel：12.8V
Nomianl Capacity(mah)：7AHB
Charge Current：≤3.5A
Discharge Current：≤7A
Dimension：150*65*95mm
Weight(g)：0.65kg

Benifits Of Lifepo4 Battery Comparing with Lead Acid Battery
- Superior “Useable” capacity. Unlike 30%-50% useable capacity, lifepo4 can be up to 85% or more.
- Longer lifespan. 10 times longer than lead acid batteries.
- Fast Charged. Fast charged to 100% of capacity, and a failure to fully charge does not damage the batteries.
- Highly Efficiency. Almost no loss in amps while charging and discharging.
- Less size and weight. Save up to 70% in size and weight.
- Environmental friendly. Lifepo4 battery is the superior friendly option in terms of environmental impact.

Typical Application
- Play mobile: Toy car, Remote control cars, Aircraft, boats and other toys.
- LED light: Miner’s lamp, Led lighting, small home application, Party lights.
- Power Tools: Electrical cropper, Electric drill, Electric Saw, Electric Hammer.
- Energy storage: backup power supply

Basic Info
Product Name	12V 7AH Lifepo4 battery replace lead acid
Model	12V7AH32650
Electrical Specification
Chemical	Lithium iron phosphate
Nominal Voltage	12.8V
Nominal Capacity	7AH
Cell type	3.2V 5000mah
Configuration	4 S 1P
Energy	89.6WH
Internal Resistance	≤70mΩ
Terminal Type	T1/Customized
Dimension	1506595mm/9070101mm (Customized)
Weight	Around 0.65kg
Charge and discharge specification
Charging Method	CC/CV
Standard Charging Voltage	14.6V
Recommended Charging Current	1A
Max. Charging Current	3.5A
Recommended Discharging Current	1A
Max. Discharging Current	10A
Pulse Discharge Current	15A/10S
Operating Temperature
Standard Charging Temperature	0～45℃
Standard Discharging Temperature	-20～55℃
Storage Temperature	-10～45℃
Notice: If the battery need be stored for a long time, Pls make sure at least one charge & discharge cycle every six months.
Cycle time and Warranty
Cycle life	2000 times(Cycle@RT, 1C rate, 100%DOD)
Warranty	24 months
Protection
Over Charge Protection
Over Discharge Protection
Over Current Protection
Short Protection
