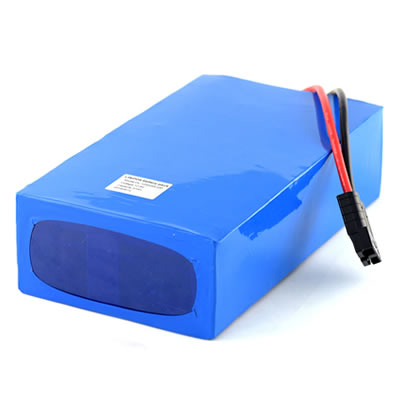

12V 50AH Lithium battery pack

Products > 12V-Lithium-Ion-Battery-Packs > 12V 50AH Lithium battery pack

Model：12V 50AH Lithium battery pack
Nominal Voltagel：12V
Nomianl Capacity(mah)：50AH
Charge Current：≤25A
Discharge Current：≤50A
Dimension：70 *166*280mm
Weight(g)：6KG

Benifits Of Lifepo4 Battery
- Superior “Useable” capacity. Unlike 30%-50% useable capacity, lifepo4 can be up to 85% or more.
- Longer lifespan. 10 times longer than lead acid batteries.
- Fast Charged. Fast charged to 100% of capacity, and a failure to fully charge does not damage the batteries.
- Highly Efficiency. Almost no loss in amps while charging and discharging.
- Less size and weight. Save up to 70% in size and weight.
- Environmental friendly. Lifepo4 battery is the superior friendly option in terms of environmental impact.

Typical Application
- Camper Vans: Camping car/Recreational Vehicles/motorhome
- Marine: boats/Yachting
- Electrical Car: Floor Machines/motorbike/electric golf car/forklift
- Power Tools: Electrical cropper/Electric drill/Electric Saw/Electric Hammer.
- Energy storage: backup power supply/solar energy storage
- LED light: Miner’s lamp/Led lighting/small home application/Party lights.

Basic Info
Product Name	12V 50AH Lifepo4 battery pack
Model	12V50AH32650
Electrical Specification
Chemical	Lithium iron phosphate
Nominal Voltage	12.8V
Nominal Capacity	50AH
Cell type	3.2V 5000mah
Configuration	4 S10P
Energy	640WH
Internal Resistance	≤100mΩ
Terminal Type	customized
Dimension	170 166280mm
Weight	Around 6kg
Charge and discharge specification
Charging Method	CC/CV
Standard Charging Voltage	14.6V
Recommended Charging Current	8A
Max. Charging Current	20A
Recommended Discharging Current	10A
Max. Discharging Current	40A
Pulse Discharge Current	60A/10S
Operating Temperature
Standard Charging Temperature	0～45℃
Standard Discharging Temperature	-20～55℃
Storage Temperature	-10～45℃
Notice: If the battery need be stored for a long time, Pls make sure at least one charge & discharge cycle every six months.
Cycle time and Warranty
Cycle life	2000 times(Cycle@RT, 1C rate, 100%DOD)
Warranty	24 months
Protection
Over Charge Protection
Over Discharge Protection
Over Current Protection
Short Protection
