12V 200AH Lifepo4 Battery

Products > 12V-Lifepo4-Replace-Lead-acid > 12V 200AH Lifepo4 Battery

Model：12V 200AH Lifepo4 Battery
Nominal Voltagel：12.8V
Nomianl Capacity(mah)：200AH
Charge Current：≤30A
Discharge Current：≤150A

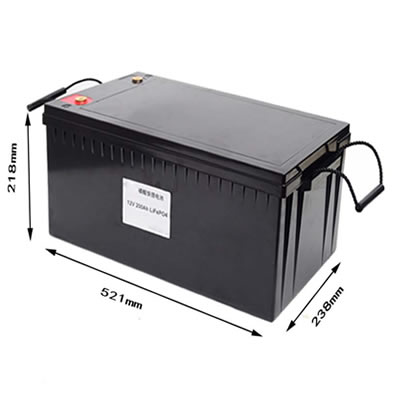

Dimension：521 *238*218mm
Weight(g)：20KG

Benefits Of Lifepo4 Battery Comparing with Lead Acid Battery
- Superior “Useable” capacity. Unlike 30%-50% useable capacity, lifepo4 can be up to 85% or more.
- Longer lifespan. 10 times longer than lead acid batteries.
- Fast Charged. Fast charged to 100% of capacity, and a failure to fully charge does not damage the batteries.
- Highly Efficiency. Almost no loss in amps while charging and discharging.
- Less size and weight. Save up to 70% in size and weight.
- Environmental friendly. Lifepo4 battery is the superior friendly option in terms of environmental impact.

Typical Application
- Camper Vans: Camping car/Recreational Vehicles/motorhome
- Marine: boats/Yachting
- Electrical Car: Floor Machines/motorbike/electric golf car/forklift
- Power Tools: Electrical cropper/Electric drill/Electric Saw/Electric Hammer.
- Energy storage: backup power supply/solar energy storage
- LED light: Miner’s lamp/Led lighting/small home application/Party lights.

Basic Info
Product Name	12V200AH Lifepo4 battery replace lead acid
Model	12V200AH32650
Electrical Specification
Chemical	Lithium iron phosphate
Nominal Voltage	12.8V
Nominal Capacity	200AH
Cell type	3.2V 6500mah
Configuration	4 S32P
Energy	2560WH
Internal Resistance	≤100mΩ
Terminal Type	M8/M10
Dimension	521 238218mm
Weight	Around 20kg
Charge and discharge specification
Charging Method	CC/CV
Standard Charging Voltage	14.6V
Recommended Charging Current	20A
Max. Charging Current	100A
Recommended Discharging Current	50A
Max. Discharging Current	200A
Pulse Discharge Current	300A/10S
Operating Temperature
Standard Charging Temperature	0～45℃
Standard Discharging Temperature	-20～55℃
Storage Temperature	-10～45℃
Notice: If the battery need be stored for a long time, Pls make sure at least one charge & discharge cycle every six months.
Cycle time and Warranty
Cycle life	2000 times(Cycle@RT, 1C rate, 100%DOD)
Warranty	24 months
Protection
Over Charge Protection
Over Discharge Protection
Over Current Protection
Short Protection
